IMPROVE 48V (51.2V) Forklift Lithium (LiFePO4) Battery

Name: IMPROVE 48V (51.2V) Forklift Lithium (LiFePO4) Battery
Brand: IMPROVE BATTERY
SKU: IMP-FK48-200
Availability: InStock

You may like this

36V Forklift LiFePO4 Battery | IMPROVE BATTERY

24V Forklift LiFePO4 Battery | IMPROVE BATTERY

FEATURES

SPECS

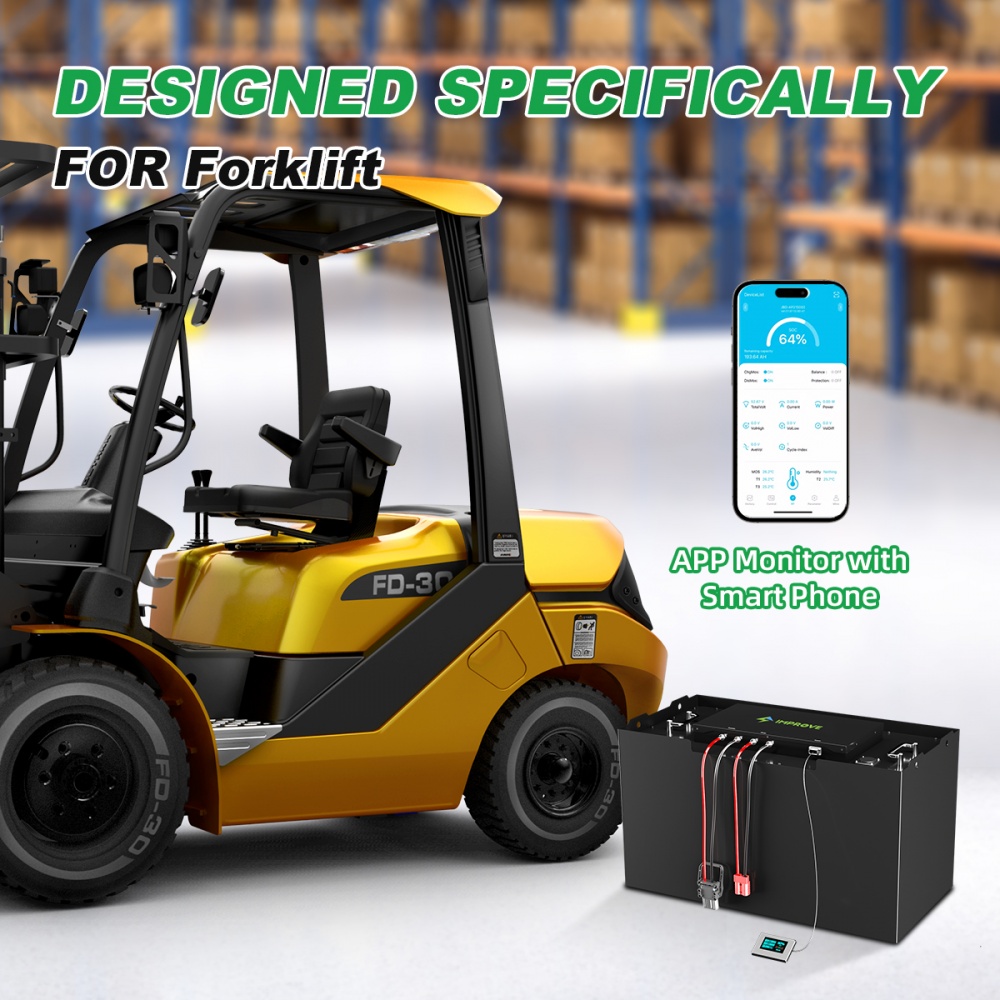

IMPROVE 48V Forklift LiFePO4 Battery

Trusted Power For Forklift

With higher energy density, Longer Lifespan

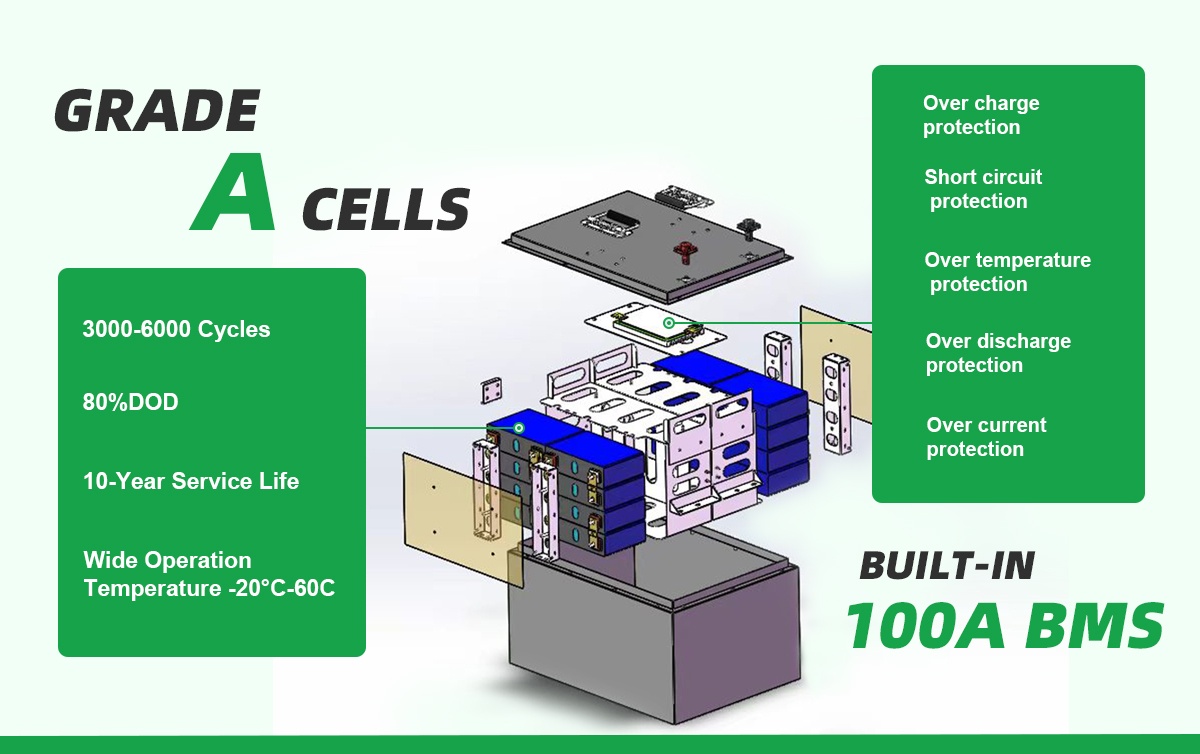

Assembly with Grade A Cells with 6000+ cycles, 80% DOD, intelligent BMS

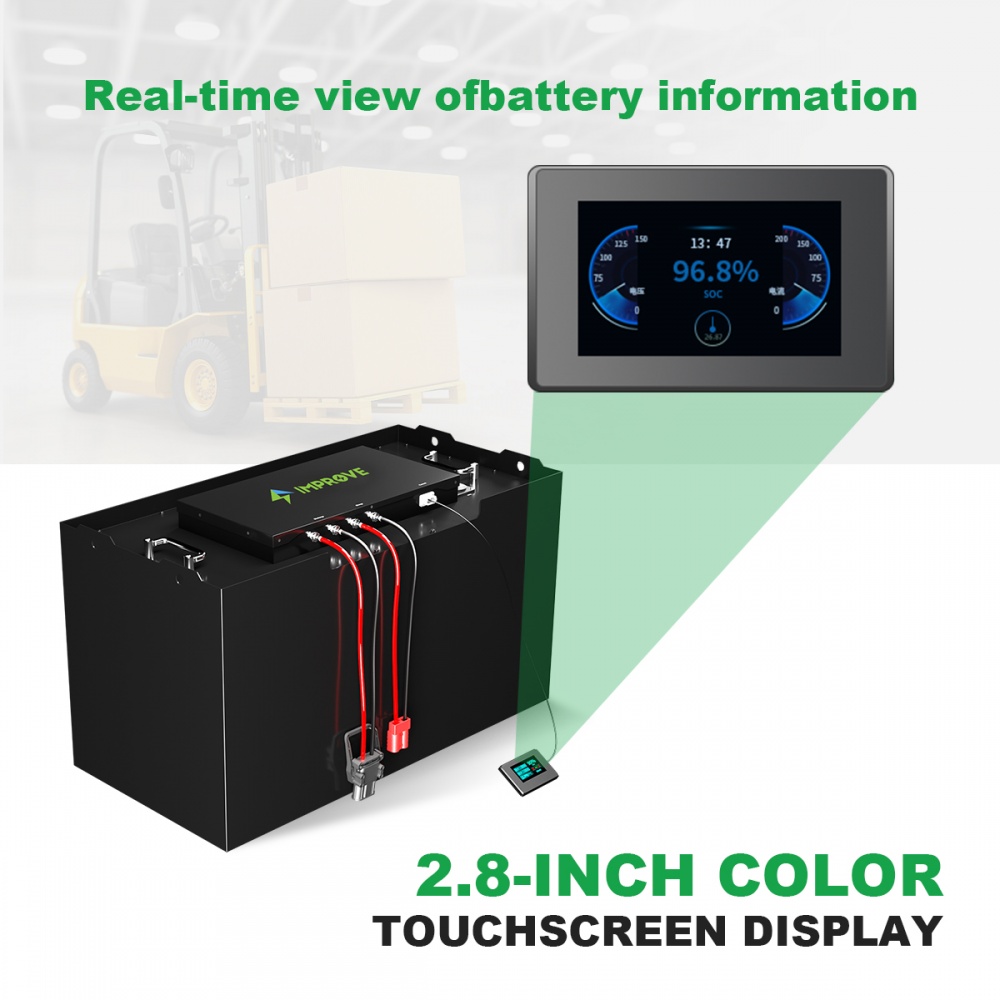

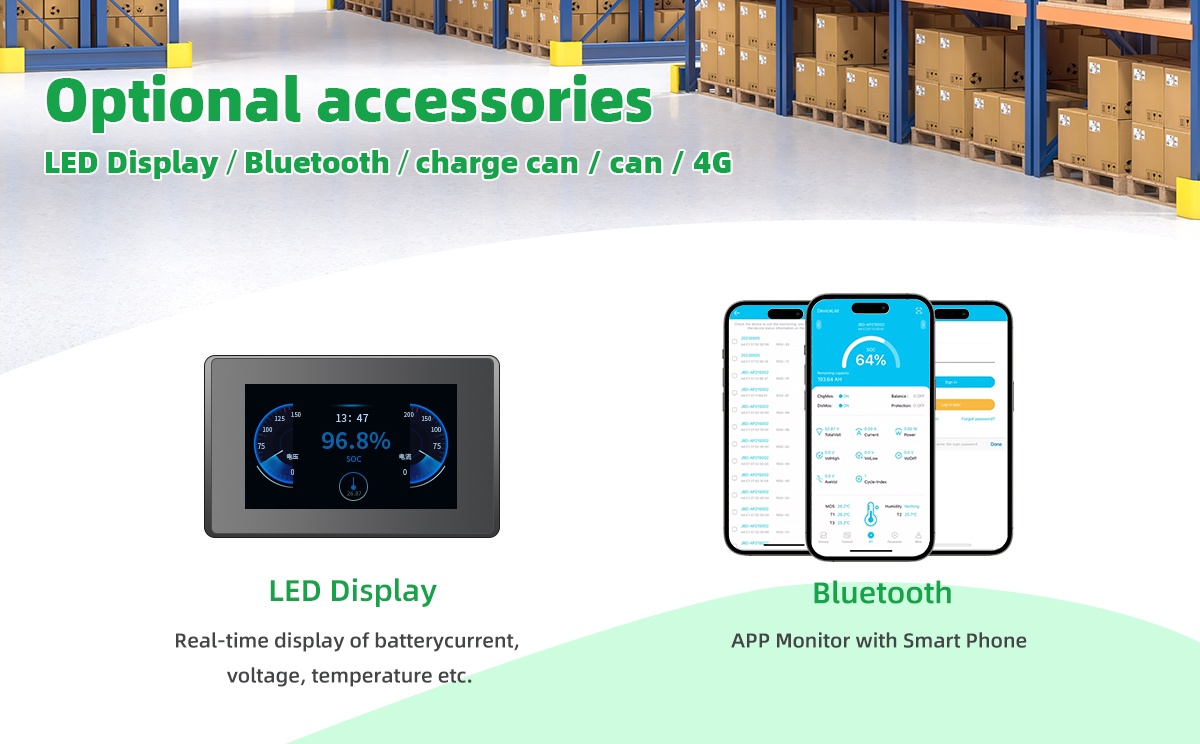

Customized accessories: Vent, CHAGE CAN, Monitor, GPRS, Bluetooth, 4G
Battery voltage can be freely customized, including but not limited to 24V, 36V, 48V, etc.

48V IMP Forklift LiFePO4 Battery Series supports charging during short breaks or periods of inactivity. This keeps your equipment performing at peak performance throughout the shift, increasing productivity. Periodic battery replacement is no longer required, further saving costs and improving safety.

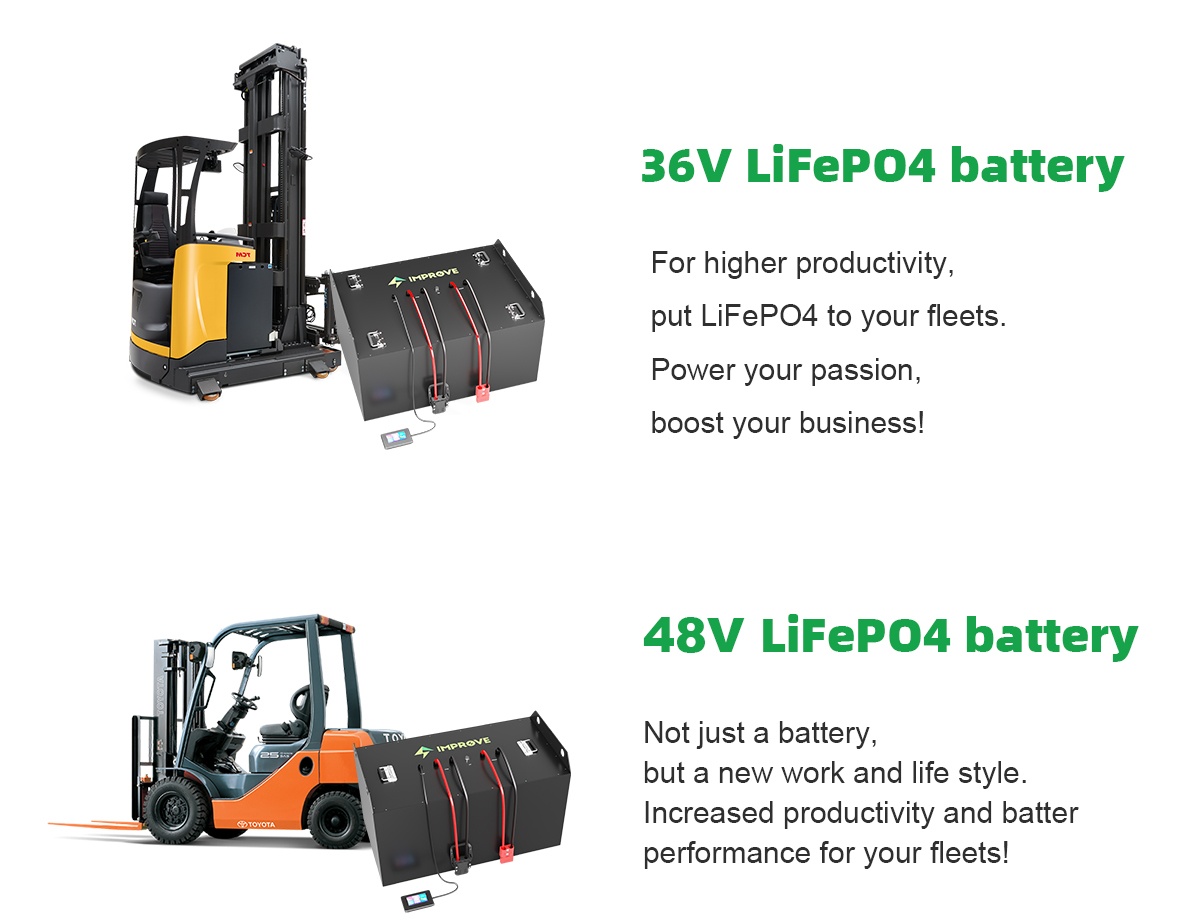

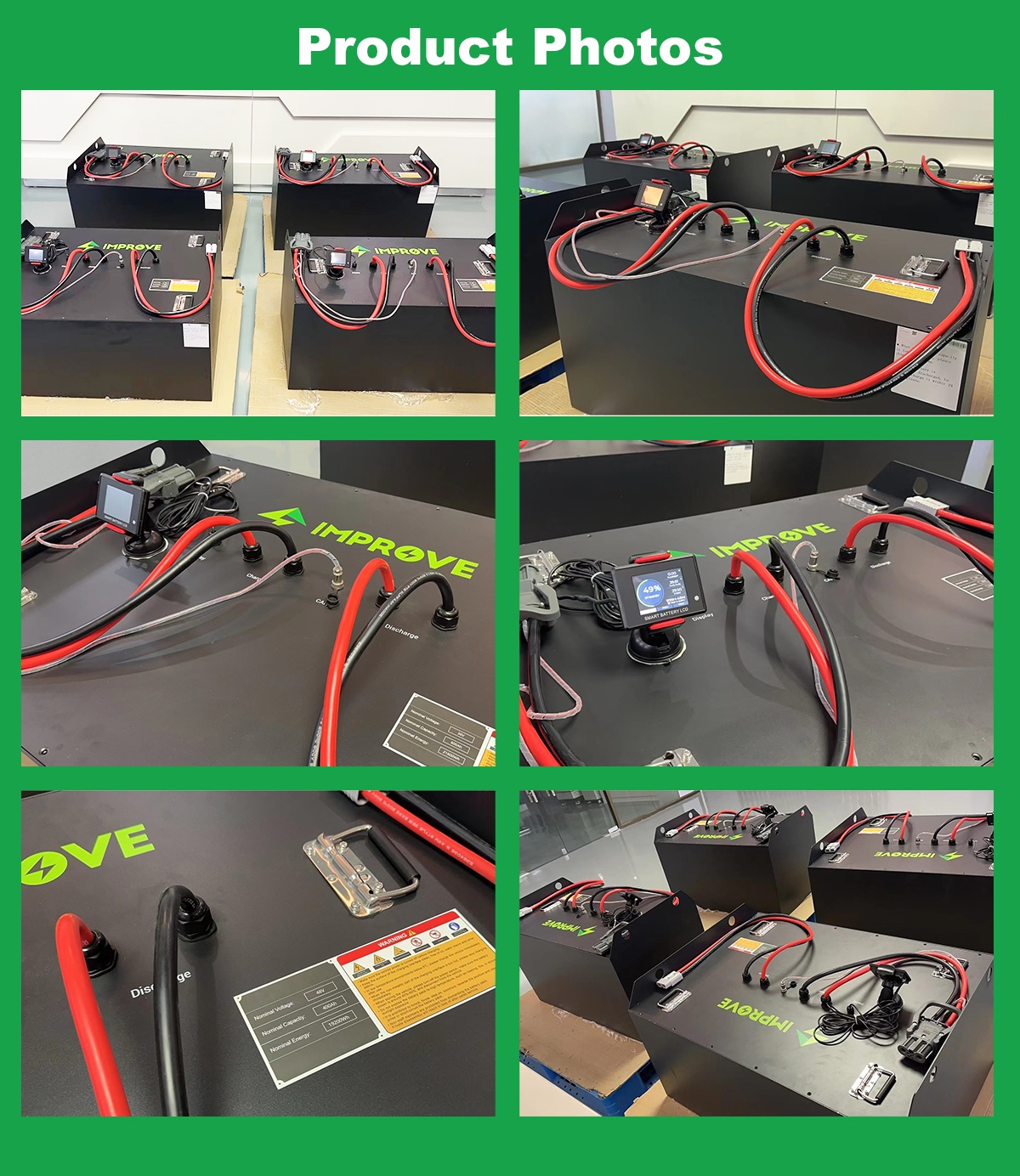

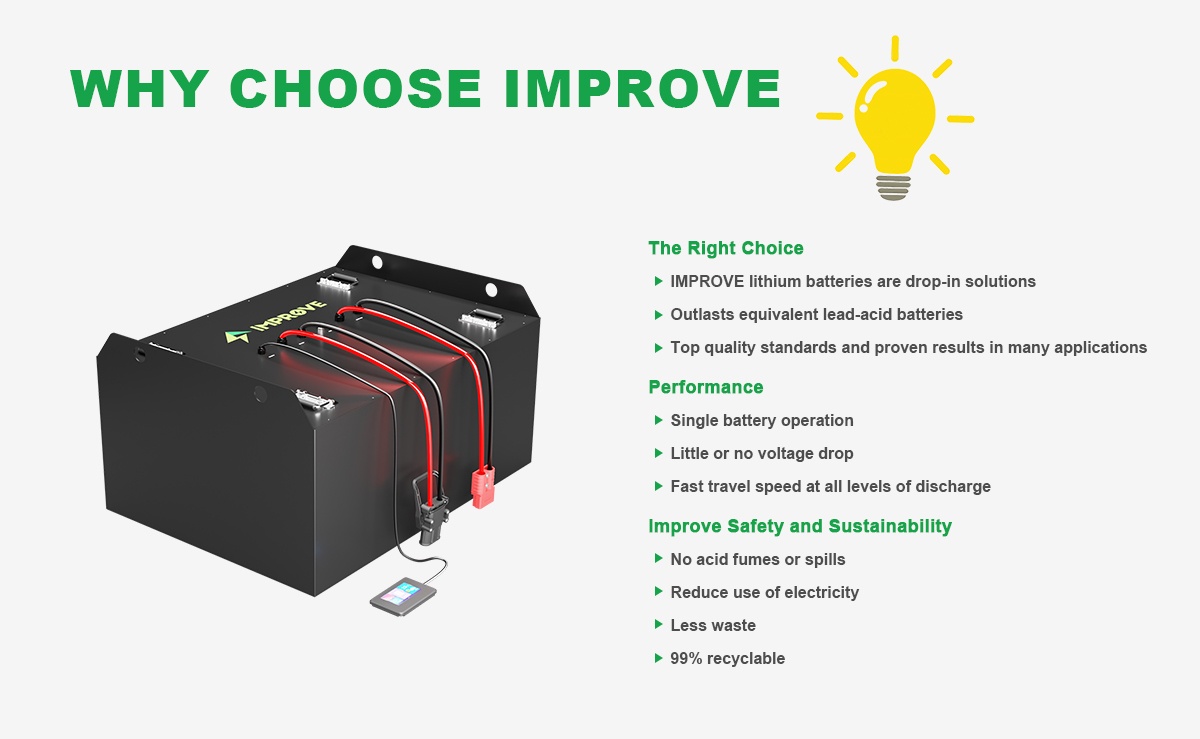

IMPROVE LiFePO4 Forklift Battery, 36V and 48V series.

Datasheet		Specification
Model		IMP-FK48-200
Nominal Voltage		51.2 V
Nominal Capacity		200 Ah (Customizable)
Nominal Energy		10.24 kWh (Customizable)
Dimension (H × W × D)		548 × 410 × 390 mm
Approx. Weight		135 kg
Life Cycles		≥6000 Cycles (80% DOD), at 25°C
Charge & Discharge
Charge Voltage		58.4 V
Discharge Cut-off Voltage		40 V
Max. Continuous Current	Charge	100 A
	Discharge	200 A
General
Temperature	Charge	0 ~ 45°C (32 ~ 113°F)
	Discharge	-20 ~ 55°C (-4 ~ 131°F)
Storage Temperature		-10 ~ 45°C (14 ~ 113°F)
Module Parallel		16 PCS
Communication Mod		Charge CAN / CAN / 4G (optional)
IP Rating		IP54
Certification		CE, UN38.3, RHOS, MSDS
