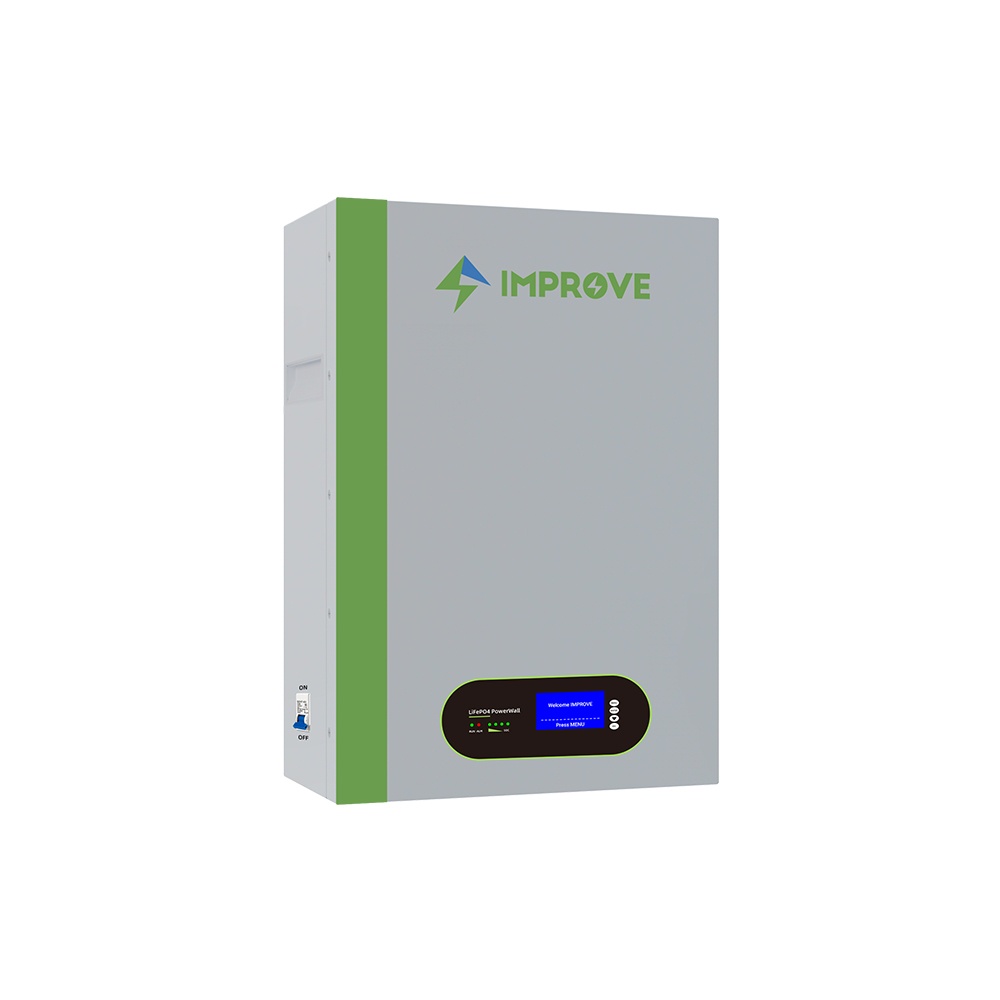

IMPROVE 48V200Ah Powerwall

Nominal Voltage51.2V
Nominal Capacity200Ah
Stored Energy10.24kWh
Weight89kg (196 lbs)
Warranty5 Years
OEM/ODMWarmly Welcomed
You may like this
48V100Ah Powerwall | IMPROVE BATTERY

48V 200Ah IMPROVE Wall Mounted Energy Storage Battery

Provides seamless backup power

Comprehensive BMS to match all hybrid inverters
Compact design, small footprint, wall-mounted installation
Single module is 51.2V 200Ah 10240Wh, allowed to be hooked up in parallel for expanded capacity

48V 200Ah Wall-mounted energy storage systems are innovative solutions designed to store electricity for residential, commercial, and industrial applications. These systems are compact and can be easily installed on walls, making them convenient for various



IMPROVE BATTERY HOME ENERGY STORAGE

Wall Mounted Energy Storage Feature

Support 16 Units In Parallel

IMPROVE Household Energy Storage

COMPATIBLE BRAND

Wall Mounted Energy Storage Application

IMPROVE BATTERY COMPANYIMPROVE BATTERY factory overviewIMPROVE BATTERY exported overseas all over the worldIMPROVE BATTERY partnersIMPROVE BATTERY certifications
Datasheet Specification
Model PW48200
Nominal Voltage 51.2V
Nominal Capactiy 200Ah
Nominal Energy 10240Wh
Dimension (H * W * D) 800*550*145mm
Approx. Weight 89 kg
Life Cycles ≥6000 Cycles (80%DOD), at 25°C
Charge & Discharge
Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Standard Current Charge 20A
Discharge 50A
Max. Continuous Current Charge 100A(200A customized)
Discharge 100A(200A customized)
General
Temperature Charge 0 ~ 45°C(32 ~ 113°F)
Discharge -20 ~ 55°C(-4 ~ 131°F)
Storage Temperature -10 ~ 45°C(14 ~ 113°F)
Module Parallel 16PCS
Communication Mod RS232 / RS485 / CAN
IP Protection IP54
Certification CE, UN38.3, RHOS, MSDS
