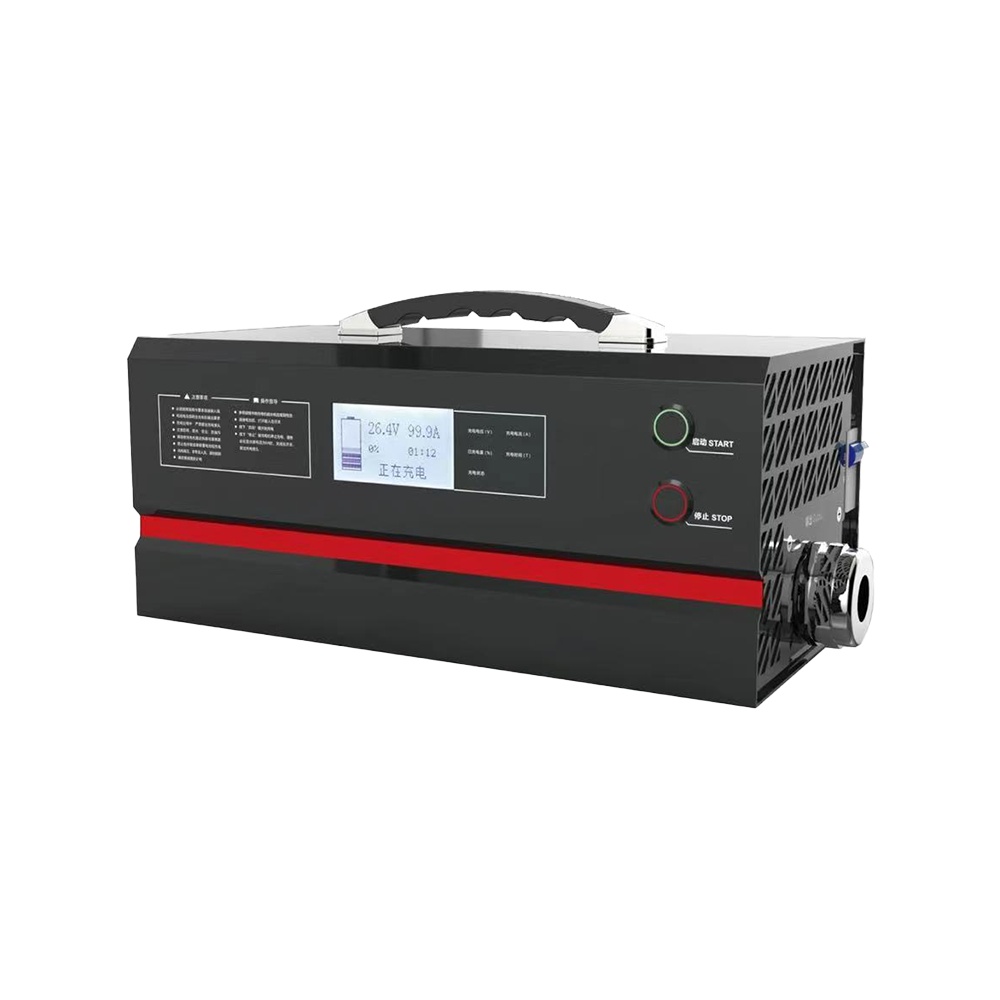

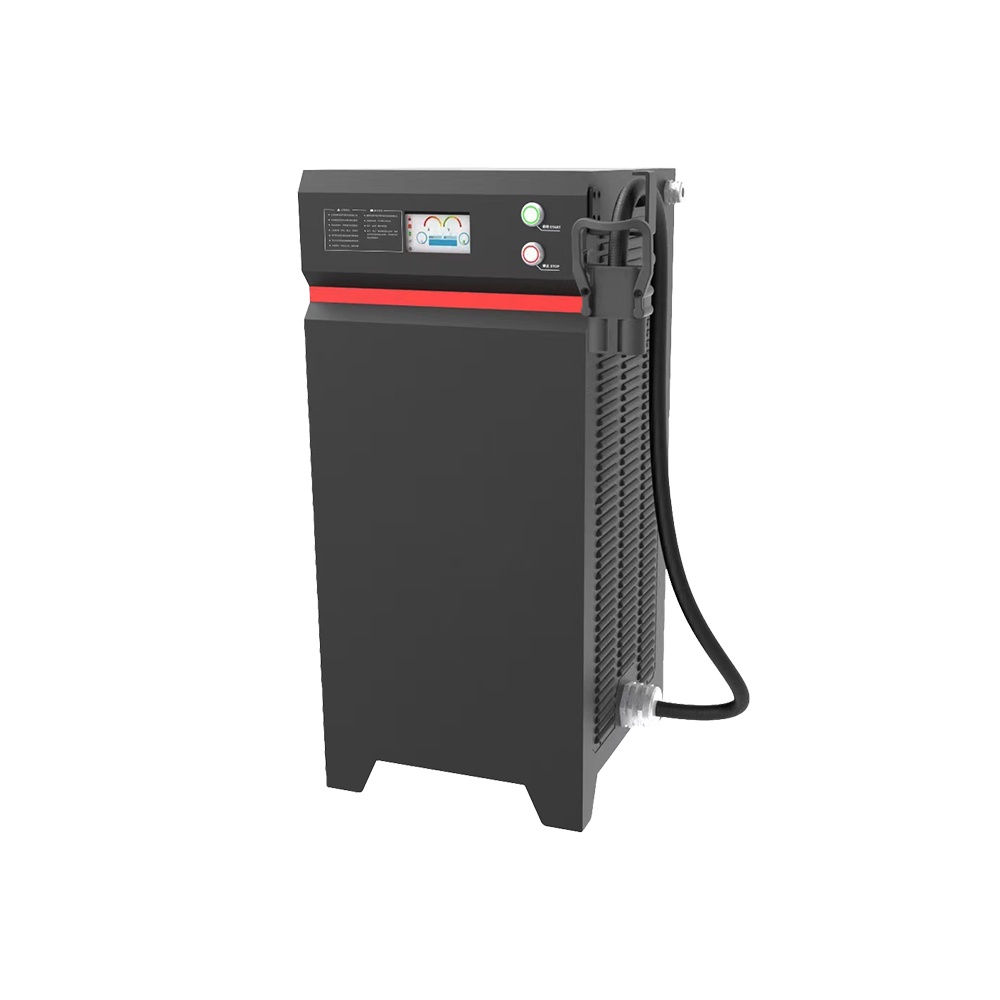

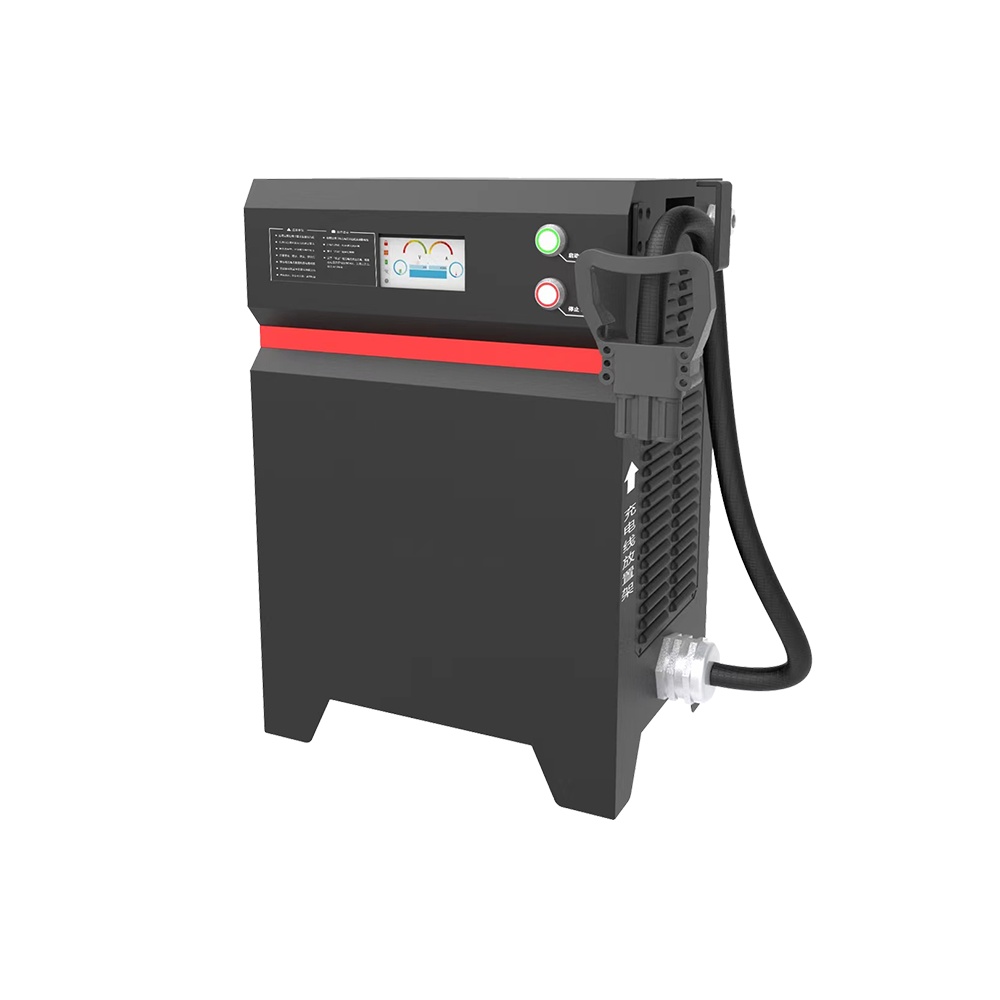

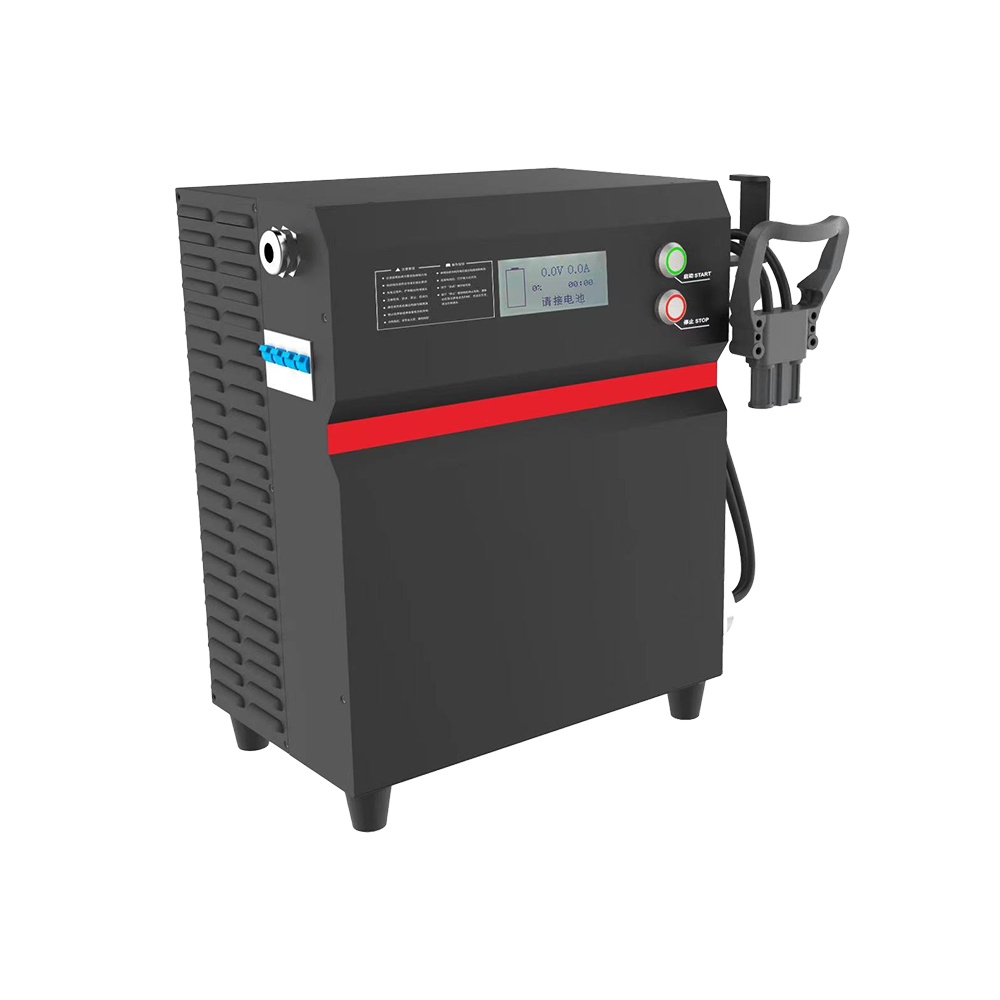

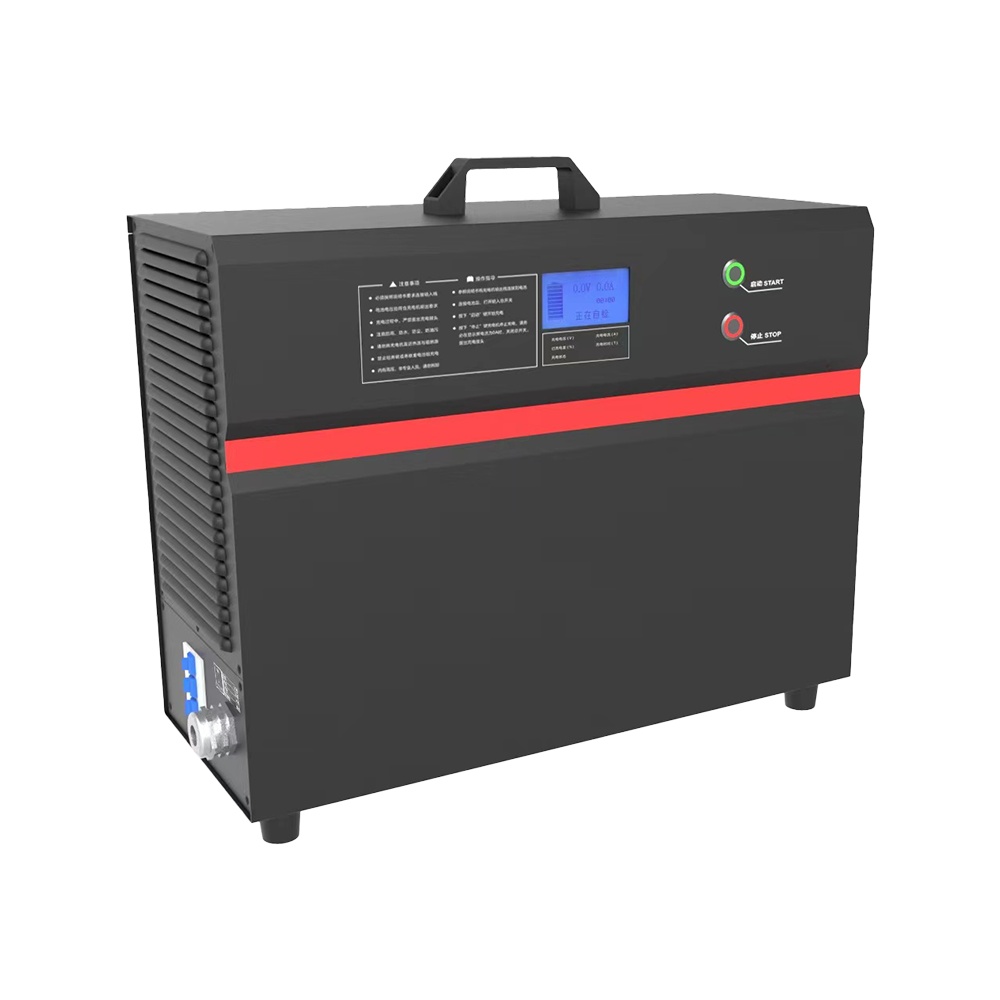

IMP Smart Forklift LiFePO4 Battery Charger Series:

Ensure safe charging operations

DC output isolated from AC input
Communication Method Option: RS485, RS232, CAN, WIFI, Bluetooth
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off

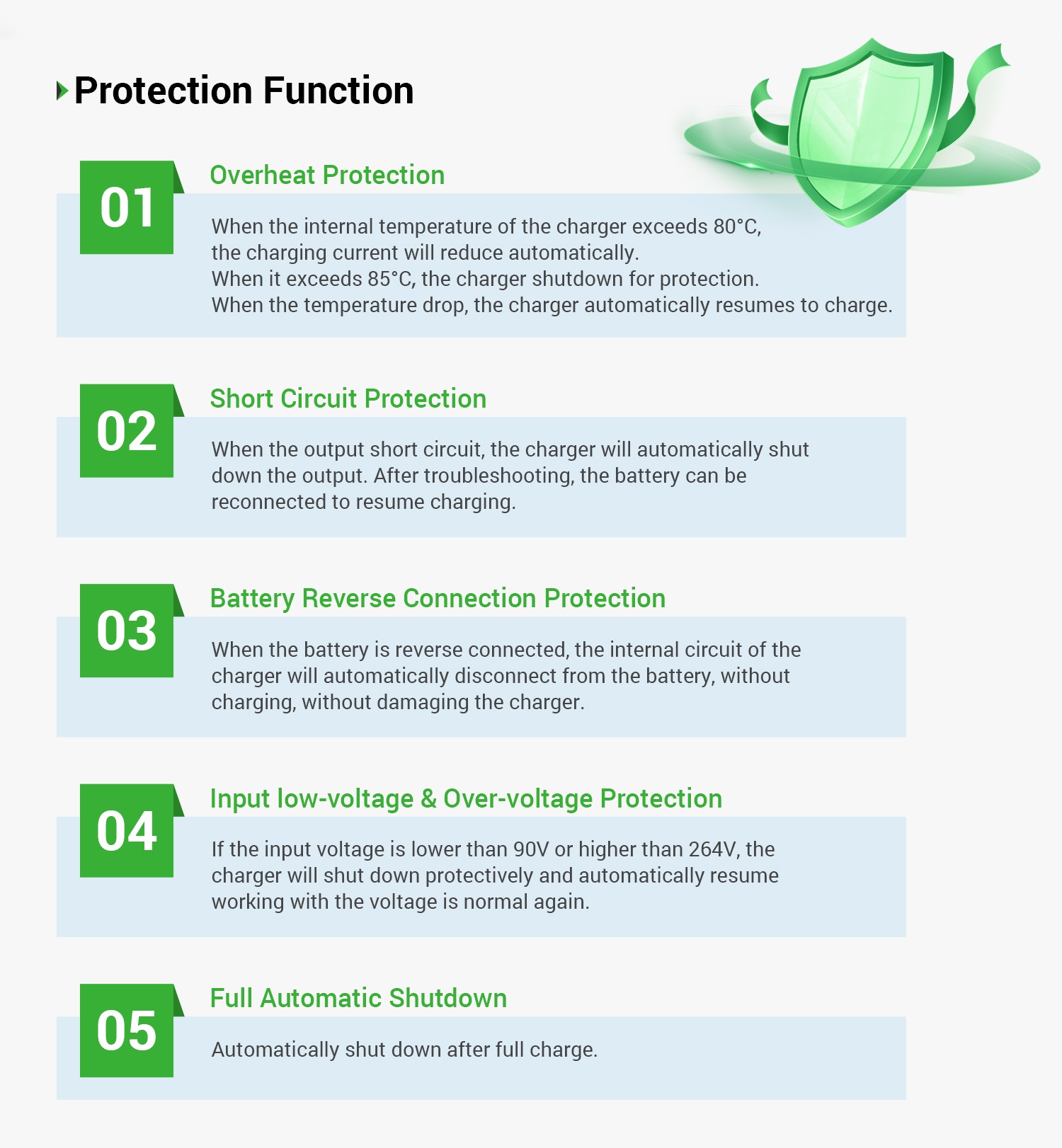

IMP 48V Forklift LiFePO4 Battery Chargers Series have built-in safety features, such as overcharge protection, short-circuit protection, overcurrent protection, and over-temperature protection, The charging process is fully automatic,and it realized intelligent charging management of various batteries.

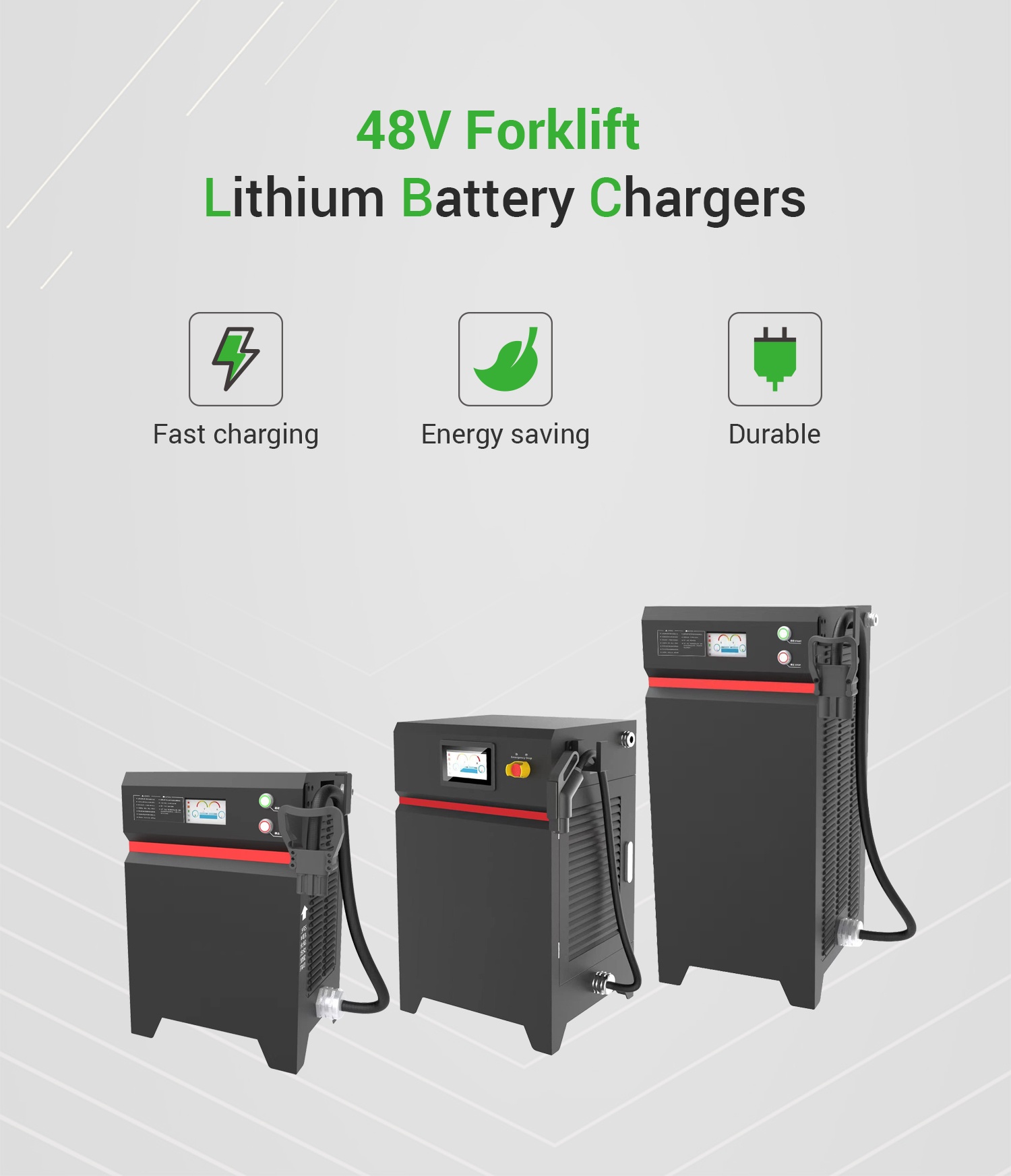

IMPROVE Forklift Lithium Battery ChargersForklift LiFePO4 Battery Chargers Protection FunctionForklift LiFePO4 Battery Chargers BMSForklift LiFePO4 Battery Chargers Communication

IMPROVE BATTERY COMPANYIMPROVE BATTERY factory overviewIMPROVE BATTERY exported overseas all over the worldIMPROVE BATTERY partnersIMPROVE BATTERY certifications
Model Voltage Output
power
Output
current
Input
current
Input
voltage
Max. output
voltage
BMS charging (battery side) Size
IMP-ADY6102 48Vdc
(30/60Vdc)
3kW 50A ≤16A 220Vac ≤60 DC 12/24V 3Amax 410*175*180mm
IMP-ADY6108 48Vdc
(30-60Vdc)
6kW 100A 30A 110/208Vac
(Derate application)
220/380Vac--
Hardware matching
of the charger to
the customer's mains
≤60 DC 12/24V 3Amax 420*290*630mm
IMP-ADY6111 9kW 150A 45A
IMP-ADY6113 12kW 200A 60A
IMP-ADY6115 15kW 250A 75A 420*440*630mm
IMP-ADY6117 18kW 300A 90A
IMP-ADY6128 21kW 350A 105A
IMP-ADY6130 24kW 400A 120A 420*440*930mm
IMP-ADY6132 27kW 450A 135A
IMP-ADY6134 30kW 500A 150A
IMP-ADY6145 48Vdc
(20-60Vdc)
18kW Single: 150A
Double: 300A
300A 380Vac±10% ≤60 12/24V 400*735*900mm
IMP-ADY6130 24kW Single: 200A
Double: 400A
400A ≤60
IMP-ADY6311 48Vdc
(20-60Vdc)
9kw 150A ≤20A 380/480Vac ≤60 DC 12/24V 3Amax 420*440*630mm
IMP-ADY6312 48/80Vdc
(20-120Vdc)
10kW 100A ≤20A ≤120
IMP-ADY6318 20kW 200A ≤40A ≤120
(BMS charging Optional) Without BMS Charging, the CAN charging protocol is blind and not controlled by the battery's signal
